IC Radio IC737

IC Radio IC737; Toshiba Corporation; (ID = 1566791) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566792) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566793) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566794) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566795) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566796) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566797) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566798) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566799) Radio

IC Radio IC737; Toshiba Corporation; (ID = 1566800) Radio
IC Radio IC737; Toshiba Corporation; (ID = 447956) Radio IC Radio IC737; Toshiba Corporation; (ID = 543688) Radio
IC Radio IC737; Toshiba Corporation; (ID = 676224) Radio IC Radio IC737; Toshiba Corporation; (ID = 729818) Radio
IC Radio IC737; Toshiba Corporation; (ID = 2106194) Radio
Use red slider bar for more.
IC Radio IC737; Toshiba Corporation; (ID = 447956) Radio
Toshiba Corporation;: IC Radio IC737 [Radio] ID = 447956 283x271
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC Radio IC737, Toshiba Corporation; Tokyo:

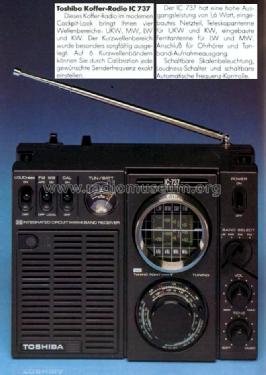

D - Prospekt

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC784 2SC784 2SC380 2SC380 2SC380 2SC785 2SC381 2SC372 2SB324 2SB324
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240; 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: IC Radio IC737 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 214 x 160 x 90 mm / 8.4 x 6.3 x 3.5 inch
Notes Toshiba Integrated Circuit 4 Band Receiver IC-737; SW: 3.8 - 12 MHz in 6 bands with built-in calibrator, tuning/batt. indicator meter, FM AFC, MW local/distant, loudness switch, dial light, tone control.
10 Transistors, 1 IC and 8 diodes, 2 Si-Rectifier.
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Source of data -- Collector info (Sammler)
Mentioned in -- Original prospect or advert

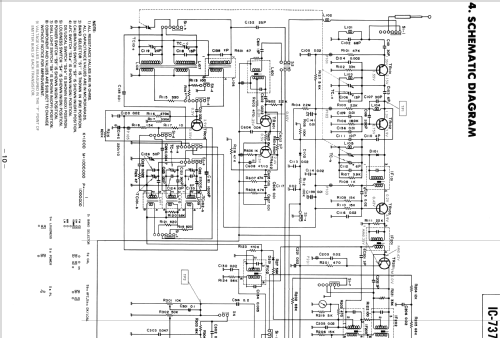

Literature/Schematics (1) TOSHIBA Corporation Catalogs (Das Toshiba-Programm für außergewöhnliches Hören und Sehen - ca. 1976 - Seite 15)
