RP-750FT

RP-750FT; Toshiba Corporation; (ID = 851523) Radio

RP-750FT; Toshiba Corporation; (ID = 851526) Radio
RP-750FT; Toshiba Corporation; (ID = 851514) Radio RP-750FT; Toshiba Corporation; (ID = 851515) Radio
RP-750FT; Toshiba Corporation; (ID = 851517) Radio RP-750FT; Toshiba Corporation; (ID = 851518) Radio
RP-750FT; Toshiba Corporation; (ID = 851519) Radio RP-750FT; Toshiba Corporation; (ID = 851521) Radio
Use red slider bar for more.
RP-750FT; Toshiba Corporation; (ID = 851514) Radio
Toshiba Corporation;: RP-750FT [Radio] ID = 851514 933x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP-750FT, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1973 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SK19 TA7104P TA7105P TA7064P 2SC380 2SC373 2SC372 2SC732 2SB415 2SB415
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     5 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC 100 / UM2: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
Power out 2.6 W (unknown quality)
from Radiomuseum.org Model: RP-750FT - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 222 x 148 x 61 mm / 8.7 x 5.8 x 2.4 inch
Notes This was "The home unit in Japan", which also incorporated a low power built-in FM transmitter controlled by a toggle switch on the top of the radio. In 1973, it was one of the first models in which a FET RF amplifier in FM band was used, which fact was reflected in proper wording on the top of the radio. Apart from 7 transistors (with two 2SB415 germanium transistors in the AF output stage, mounted on a large aluminum heat sink to produce 2.6 watt of audio), there are also three silicon monolithic IC's (TA7104P, TA7105P, and TA7064P) inside the radio. RF and IF stages of the receiver are made on separate PC boards called "Function Units", which are then mounted on the main PC board of the radio.

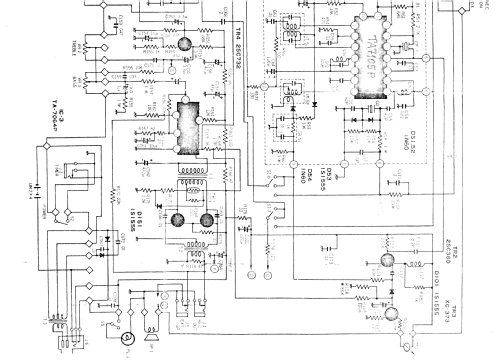

List of the transistors used in RP750FT: 2SK19 (FET, in FM RF amplifier)), 2SC380, 2SC373 (XC-373 as per circuit diagram), 2SC372, 2SC732, and coupled pair of Ge output transistors 2SB415.
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)

Model page created by Dmitri Faguet. See "Data change" for further contributors.
