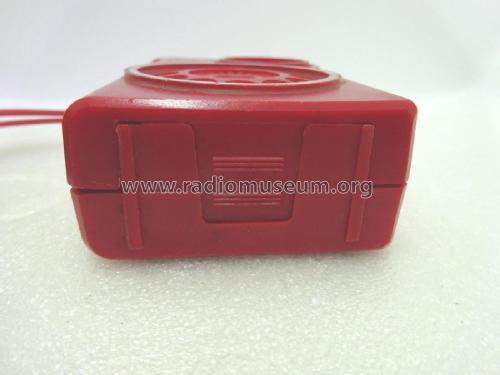

RP-85; Toshiba Corporation; (ID = 2309408) Radio
Toshiba Corporation;: RP-85 [Radio] ID = 2309408 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP-85, Toshiba Corporation; Tokyo: 183471338422 seller aok4765
Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name
Shibaura Engineering Works
Tokyo Shibaura
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Model: RP-85 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

Toshiba model RP-85 is made in Japan, is very similar to the Toshiba model RP-82 (made in Taiwan) and uses the same PCB with a single IF stage: the PCB of model RP-85 clearly shows an empty space where in the model RP-82 the second IF stage is placed

Model page created by Aldo Andreani. See "Data change" for further contributors.
