• Country
• Italy

• Manufacturer / Brand
• Trans Continents (Prandoni); Milano, Treviglio

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246021

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 35D5 35A3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

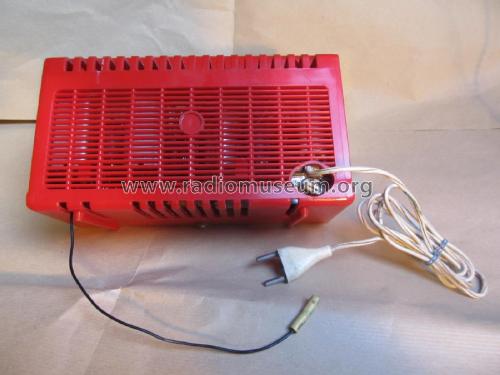

• Model: PD71 - Trans Continents Prandoni;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 220 x 100 x 130 mm / 8.7 x 3.9 x 5.1 inch

• Mentioned in
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 132 models, 99 with images and 47 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Trans Continents (Prandoni); Milano, Treviglio
