521-80 Ch= 412E4
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 332308

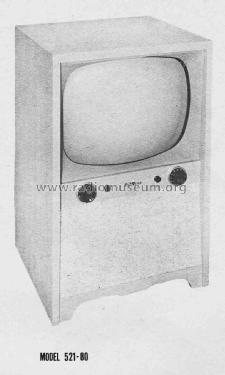

Picture from service manual.

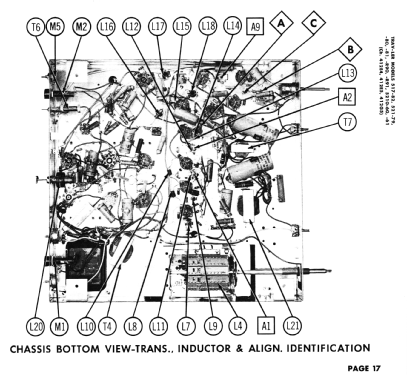

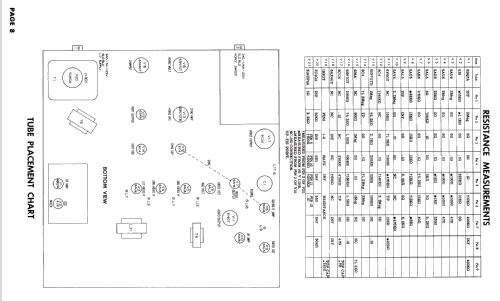

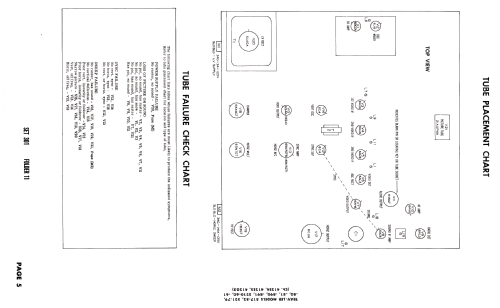

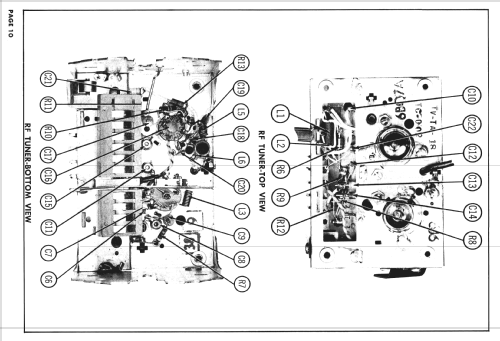

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BQ7A 6J6 6AU6 6AU6 6AU6 6AL5 6AH6 6AU6 6AL5 6AV6 6V6GT 6C4 6SN7GTB 6C4 6S4A 6SN7GT 6CU6 6AX4GT 1B3GT 5U4GA 21AUP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 521-80 Ch= 412E4 - Trav-Ler Karenola Radio &
- Shape
- Console with any shape - in general
- Notes
-
Trav-Ler model 521-80 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 412E4, VHF tuner TV-TA-18 and picture tube 21AUP4A.
