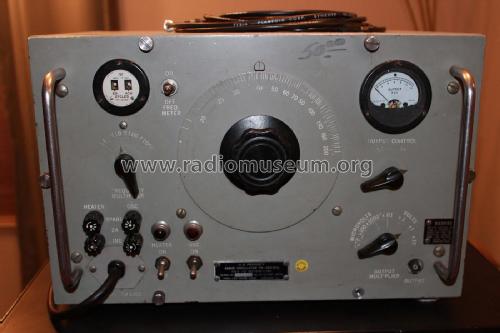

Audio Oscillator TS382D/U
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1953
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 161700
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Audio Oscillator TS382D/U - Trav-Ler Karenola Radio &
- Shape
- Rack
- Dimensions (WHD)
- 422 x 270 x 285 mm / 16.6 x 10.6 x 11.2 inch
- Notes

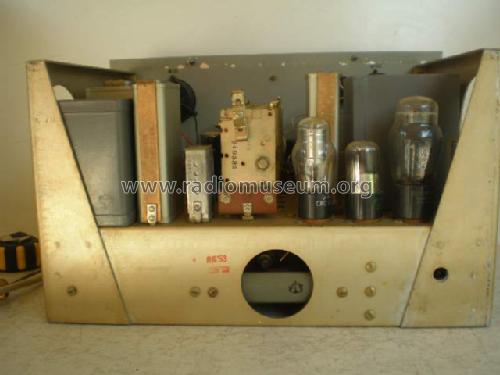

- L'alimentazione anodica è stabilizzata da una 0A3. Attorno al telaio sono disposte 4 resistenze,in serie alla rete, che servono per portare e mantenere lo chassis ad una temperatura prestabilita. Infatti all'accensione, la tensione anodica appare dopo che è stata raggiunta una certa temperatura.
- Author
- Model page created by Fabio Masetti. See "Data change" for further contributors.
