Digital Satellite-Receiver DVB 170 S
Triax A/S; Hornsyld
- Country
- Denmark
- Manufacturer / Brand
- Triax A/S; Hornsyld
- Year
- 2003 ??
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 332557
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Satellite-Receiver DVB 170 S - Triax A/S; Hornsyld
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 300 x 63 x 160 mm / 11.8 x 2.5 x 6.3 inch
- Notes
-

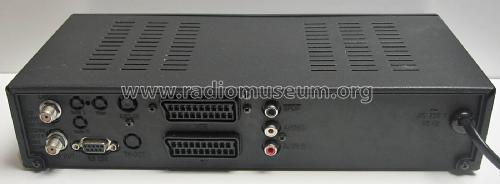

DVB-S-Receiver zum Empfang freier digitaler Programme. Anschlüsse: LNB IN (13/18 V max. 500 mA ; 0/22 kHz), LNB OUT, TV-SCART, VCR-SCART, Audio Out analog L+R (Cinch), SPDIF- digital Audio Out (Cinch), RS232.
- Net weight (2.2 lb = 1 kg)
- 1.114 kg / 2 lb 7.3 oz (2.454 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
