2-Way Speaker System LS-220

2-Way Speaker System LS-220; Trio-Kenwood (ID = 1903120) Speaker-P 2-Way Speaker System LS-220; Trio-Kenwood (ID = 1903122) Speaker-P
Use red slider bar for more.
2-Way Speaker System LS-220; Trio-Kenwood (ID = 1903120) Speaker-P
Trio-Kenwood: 2-Way Speaker System LS-220 [Speaker-P] ID = 1903120 1400x1980
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-Way Speaker System LS-220, Trio-Kenwood Electronic Inc.; Komagane:

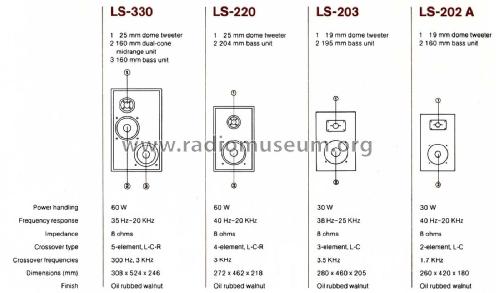

Kenwood Katalog 1977
Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name
Trio Corp.
Year: 1977 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 60 W (max.)
from Model: 2-Way Speaker System LS-220 - Trio-Kenwood Electronic Inc.;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 272 x 462 x 218 mm / 10.7 x 18.2 x 8.6 inch

Kenwood 3-Way 3-Speaker System Model LS-220.
Power Handling 60 Watts
40 - 20000Hz, 8 ohms
Crossover type: 4-element, L-C-R
Crossover Frequency 3000Hz
Finish: Oil rubbed walnut
1x 204mm Bass Unit
1x 25 mm Dome Tweeter

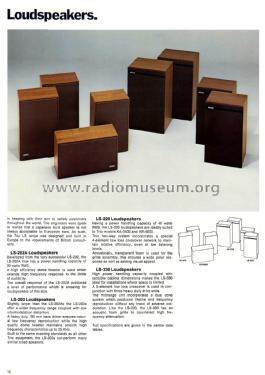

Mentioned in - - Manufacturers Literature (Kenwood Katalog - HiFi Stereo 1977)

Model page created by Franz Scharner. See "Data change" for further contributors.
