AM-FM Stereo Receiver KR-A5040

Kenwood, Trio-Kenwood Inc.; Komagane

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 253114
    • alternative name: Trio Corp.
    • Brand: Jennen

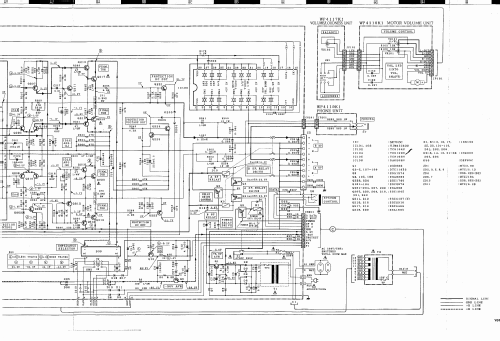

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 160 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AM-FM Stereo Receiver KR-A5040 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 129 x 334 mm / 17.3 x 5.1 x 13.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Author
  • Model page created by Kent Johansson. See "Data change" for further contributors.
