AM-FM Stereo Tuner KT-9900

Kenwood, Trio-Kenwood Inc.; Komagane

  • Year
  • 1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 309378
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AM-FM Stereo Tuner KT-9900 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 149 x 376 mm / 16.9 x 5.9 x 14.8 inch
  • Notes
  • Trio KT-9900 is similar to the KT-8300 (same service manual), according to SM: "KT-9900 is the model name of the KT-8300 which shipped to AUDIO CLUB". (Type / location of AUDIO CLUB unknown). Due to the country-specific configuration, the KT-9900 corresponds most closely to the Pacific version ("PX") of the KT-8300.

    Trio KT-9900 ist ähnlich zum KT-8300 (gleiches Servicemanual), lt. SM: "KT-9900 is the model name of KT-8300 which shipped to AUDIO CLUB ". (Art / Standort von AUDIO CLUB unbekannt). Auf Grund der länderspezifischen Konfiguration entspricht der KT-9900 am ehesten der Pazifik- Version ("PX") des KT-8300.

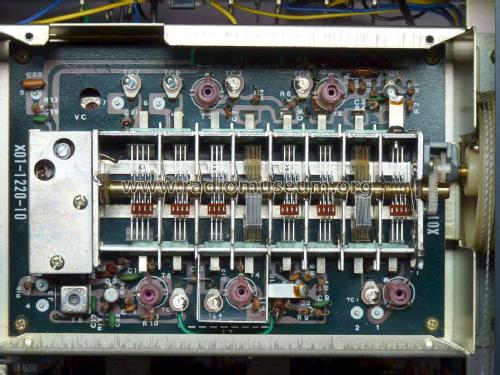

    6-fach abgestimmtes FM-Frontend.

    Anmerkung: Die De- Emphasis ist hinten von 25 µs auf 75 µs umschaltbar. Änderung auf 50 µs ist leicht, indem die direkt an diesem Schalter angelöteten 2 nF Kondensatoren durch je 1 nF ersetzt werden, Schaltstellung 75 µs.

    Preis (1200 DM) des identischen KT-8300, lt. fono forum Test vom Jan. 1977

  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Price in first year of sale
  • 1,200.00 DM
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Kenwood KT-8300 KT-9900 dated 1976-3)
  • Author
  • Model page created by Boris Witke. See "Data change" for further contributors.
