DC Stereo Integrated Amplifier KA-400

DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 956465) Ampl/Mixer
DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 956464) Ampl/Mixer DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 2240186) Ampl/Mixer
DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 2240187) Ampl/Mixer DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 2240188) Ampl/Mixer
DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 2240189) Ampl/Mixer DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 2240190) Ampl/Mixer
Use red slider bar for more.
DC Stereo Integrated Amplifier KA-400; Trio-Kenwood (ID = 956464) Ampl/Mixer

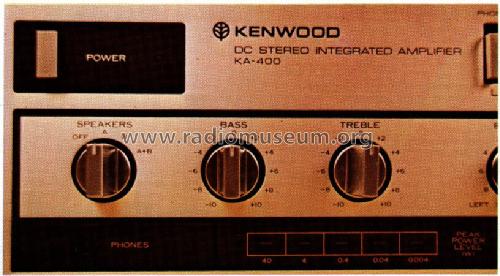

Trio-Kenwood: DC Stereo Integrated Amplifier KA-400 [Ampl/Mixer] ID = 956464 816x452
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC Stereo Integrated Amplifier KA-400, Trio-Kenwood Electronic Inc.; Komagane:
Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1980 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 90 W (unknown quality)
from Radiomuseum.org Model: DC Stereo Integrated Amplifier KA-400 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 139 x 341 mm / 15.7 x 5.5 x 13.4 inch
Notes

Power output: 45 watts per channel into 8Ω (stereo) -  Frequency response: 1Hz to 100kHz - Total harmonic distortion: 0.005% - Input sensitivity: 2.5mV (MM), 150mV (line) - Signal to noise ratio: 78dB (MM), 105dB (line) - Output: 150mV (line) - Speaker load impedance: 4Ω to 16Ω .

Made in Japan.



Net weight (2.2 lb = 1 kg) 6.9 kg / 15 lb 3.2 oz (15.198 lb)
Mentioned in Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy

Model page created by Alessandro De Poi. See "Data change" for further contributors.
