Grid-Dip-Meter DM-81

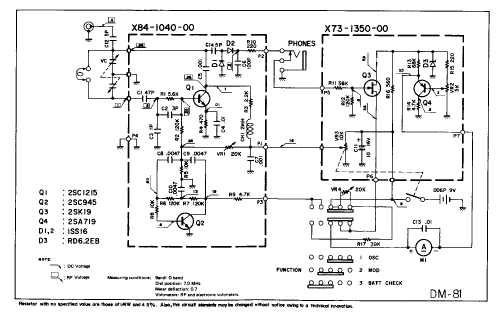

Grid-Dip-Meter DM-81; Trio-Kenwood (ID = 520276) Equipment
Grid-Dip-Meter DM-81; Trio-Kenwood (ID = 520275) Equipment Grid-Dip-Meter DM-81; Trio-Kenwood (ID = 520277) Equipment
Use red slider bar for more.
Grid-Dip-Meter DM-81; Trio-Kenwood (ID = 520275) Equipment
Trio-Kenwood: Grid-Dip-Meter DM-81 [Equipment] ID = 520275 314x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grid-Dip-Meter DM-81, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1975 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 4:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Grid-Dip-Meter DM-81 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 45 x 180 mm / 2.8 x 1.8 x 7.1 inch
Notes HF Generator mit einem 1KHz Modulator.
Das Grid-Dip-Meter DM81 umfasst 7 Frequenz-Bereiche:
0,7...1,6; 1,5...3,6; 3...7,4; 6,9...17,5; 17...42; 41...110; 83...250 MHz.
Der Bereichs-Wechsel erfolgt mittels Steck-Spulen.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Source of data - - Data from my own collection

Model page created by Heinz Höger. See "Data change" for further contributors.
