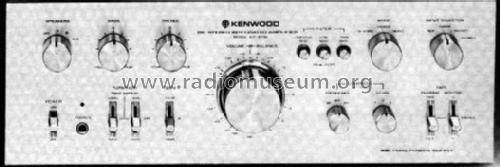

DC Stereo Integrated Amplifier KA-8100

DC Stereo Integrated Amplifier KA-8100; Trio-Kenwood (ID = 2504568) Ampl/Mixer DC Stereo Integrated Amplifier KA-8100; Trio-Kenwood (ID = 2504570) Ampl/Mixer
DC Stereo Integrated Amplifier KA-8100; Trio-Kenwood (ID = 573424) Ampl/Mixer DC Stereo Integrated Amplifier KA-8100; Trio-Kenwood (ID = 1842263) Ampl/Mixer
Use red slider bar for more.
DC Stereo Integrated Amplifier KA-8100; Trio-Kenwood (ID = 2504568) Ampl/Mixer
Trio-Kenwood: DC Stereo Integrated Amplifier KA-8100 [Ampl/Mixer] ID = 2504568 1400x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC Stereo Integrated Amplifier KA-8100, Trio-Kenwood Electronic Inc.; Komagane:
Ebay.com auction item_283796590995 seller sweetdeal1204

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 150 W (unknown quality)
from Radiomuseum.org Model: DC Stereo Integrated Amplifier KA-8100 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Rack
Dimensions (WHD) 17 x 5.9 x 15.12 inch / 432 x 150 x 384 mm
Notes Integrated Stereo Amplifier with dual-power supplies. 75 watts per channel into 8 ohms.
Independent preamplifier power supply.
2 tape deck capability with bi-directional dubbing and tape-through circuit.
Tone defeat and subsonic filter, high and low filters (12dB per octave).
Optional CB-8K walnut veneer cabinet, B-8 walnut veneer side panels or D-7 carrying handles available.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
