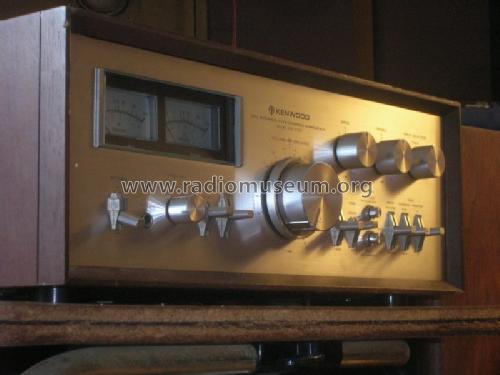

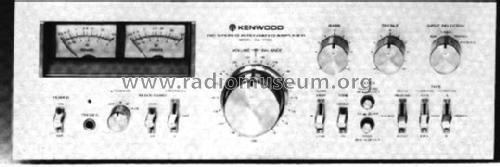

DC Stereo Integrated Amplifier KA-9100

DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 2505183) Ampl/Mixer DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 2505184) Ampl/Mixer
DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 2505187) Ampl/Mixer DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 2505186) Ampl/Mixer
DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 1307749) Ampl/Mixer DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 573425) Ampl/Mixer
DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 1842262) Ampl/Mixer
Use red slider bar for more.
DC Stereo Integrated Amplifier KA-9100; Trio-Kenwood (ID = 2505183) Ampl/Mixer
Trio-Kenwood: DC Stereo Integrated Amplifier KA-9100 [Ampl/Mixer] ID = 2505183 1400x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC Stereo Integrated Amplifier KA-9100, Trio-Kenwood Electronic Inc.; Komagane:
Ebay.com auction item_133359965305 seller vic_oilsteems

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 180 W (unknown quality)
from Radiomuseum.org Model: DC Stereo Integrated Amplifier KA-9100 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Rack
Dimensions (WHD) 17 x 5.9 x 15.12 inch / 432 x 150 x 384 mm
Notes Integrated Stereo Amplifier, 90 watts per channel into 8 ohms.
2 selectable-range power meters, independent preamplifier power supply.
2 tape deck capability with bi-directional dubbing and tape-through circuit.
High filter and subsonic filter (12dB per octave).
Optional B-9 walnut veneer side panels or D-7 carrying handles available.
Net weight (2.2 lb = 1 kg) 18.4 kg / 40 lb 8.5 oz (40.529 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Trio-Kenwood Electronic Inc.; Komagane
Here you find 755 models, 676 with images and 204 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
