Kenwood Stereo Integrated Amplifier KA-58

Kenwood, Trio-Kenwood Inc.; Komagane

  • Year
  • 1989 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 233079
    • alternative name: Trio Corp.
    • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

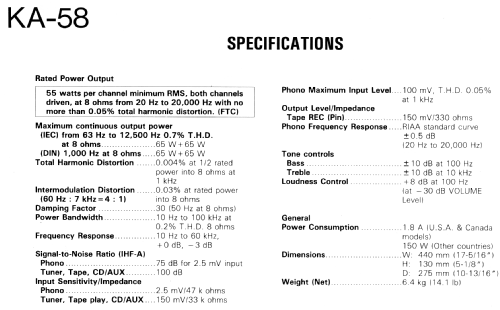

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 110 W (130 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Kenwood Stereo Integrated Amplifier KA-58 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 130 x 275 mm / 17.3 x 5.1 x 10.8 inch
  • Notes
  • Kenwood Stereo Integrated Amplifier Model KA-58.
    Inputs Phono, Tuner, CD/AUX, Tape1, Tape2.
    Speakers A + B (8 -16 Ω).
    Bass-, Treble-Control, Loudness.
    Made in Singapore.

  • Net weight (2.2 lb = 1 kg)
  • 6.4 kg / 14 lb 1.6 oz (14.097 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
