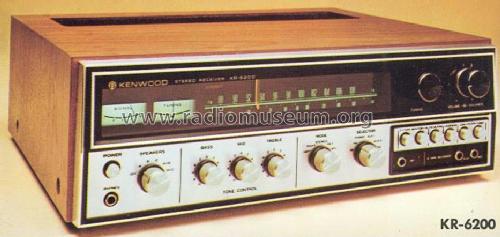

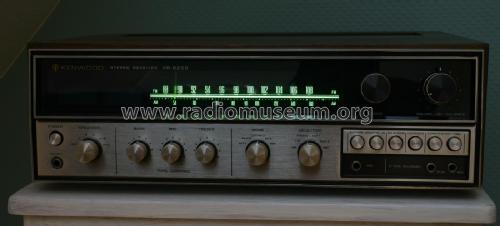

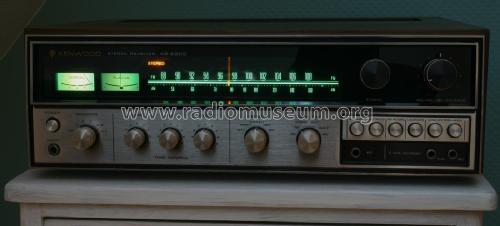

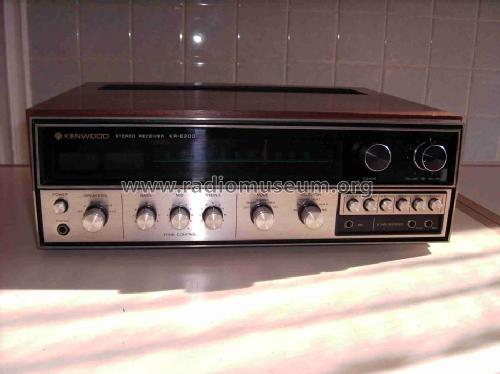

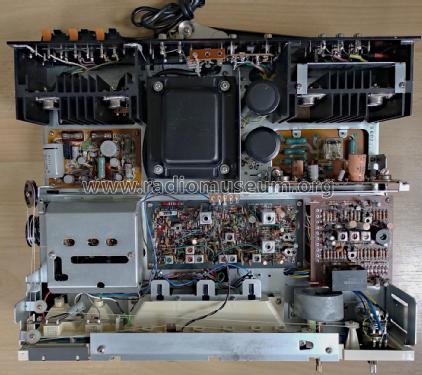

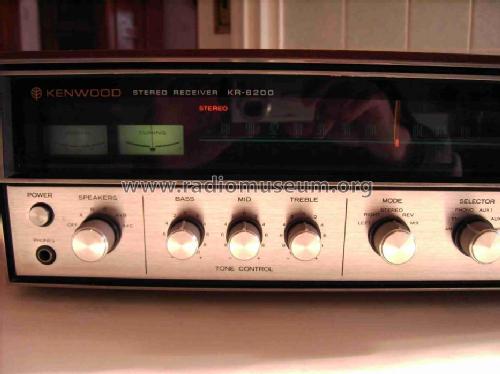

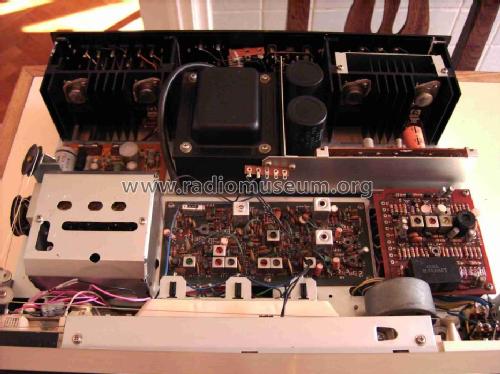

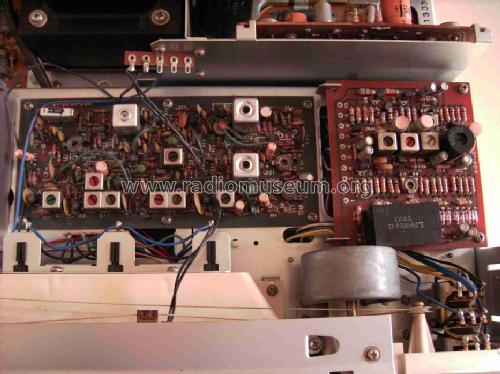

Stereo Receiver KR-6200

• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114280

• • alternative name: Trio Corp.
  • Brand: Jennen

• Picture

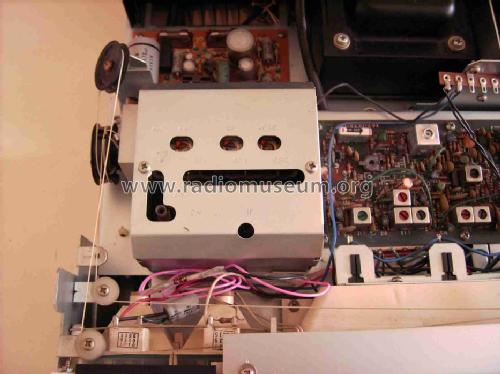

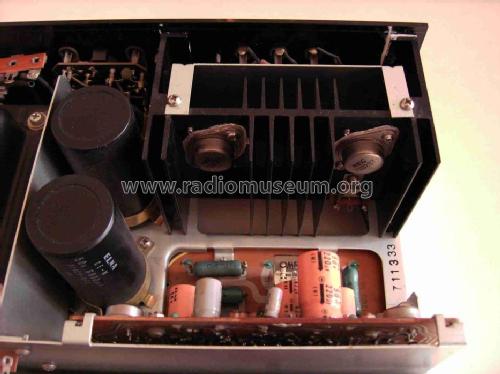

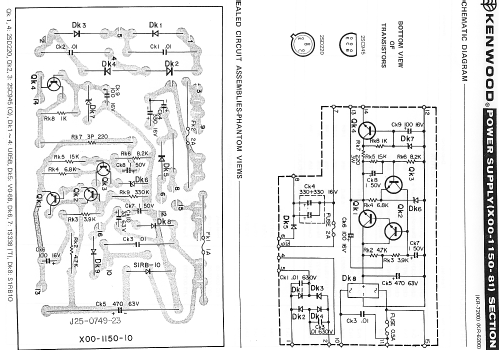

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 57

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 8 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver KR-6200 - Kenwood, Trio-Kenwood Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 17.12 x 5.75 x 14 inch / 435 x 146 x 356 mm

• Notes

• Trio-Kenwood Stereo Receiver KR-6200

  Tuning range: FM, MW
  Power output: 45 watts per channel into 8 Ω (stereo)
  Frequency response: 20 Hz to 40 kHz
  Total harmonic distortion: 0.5%
  Damping factor: 50
  Input sensitivity: 3 mV (mic), 2.5 mV (MM), 180 mV (line)
  Signal to noise ratio: 55 dB (mic), 65 dB (MM), 75 dB (line)
  Output: 180 mV (line), 36 mV (DIN)
  Speaker load impedance: 4 Ω to 16 Ω

  Semiconductors: 2 x FET, 1 x IC, 54 x transistors, 45 x diodes

  Price in Denmark 1973: 4865 KR

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Mentioned in
• HiFi Arbogen 1973 page 61
