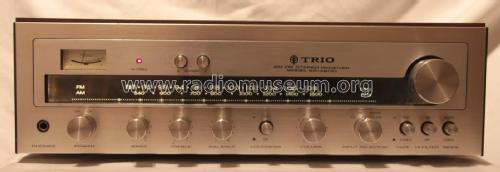

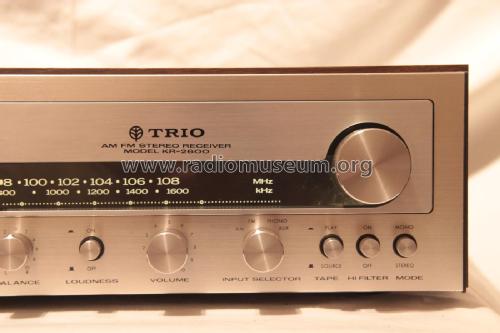

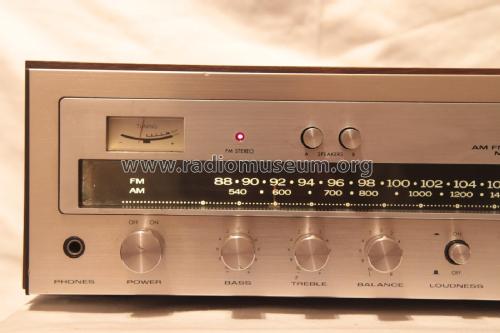

AM FM Stereo Receiver KR-2600

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597909) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597910) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597911) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597912) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597913) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597914) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597915) Radio

AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597916) Radio
AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634177) Radio AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634172) Radio
AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634174) Radio AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634171) Radio
AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634173) Radio AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634176) Radio
AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1597908) Radio AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1830976) Radio
AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1830977) Radio AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 1830978) Radio
Use red slider bar for more.
AM FM Stereo Receiver KR-2600; Trio-Kenwood (ID = 634177) Radio
Trio-Kenwood: AM FM Stereo Receiver KR-2600 [Radio] ID = 634177 933x326
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM FM Stereo Receiver KR-2600, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

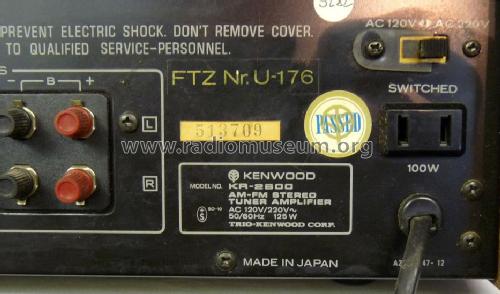

Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (unknown quality)
from Radiomuseum.org Model: AM FM Stereo Receiver KR-2600 - Trio-Kenwood Electronic Inc.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 130 x 320 mm / 17.3 x 5.1 x 12.6 inch

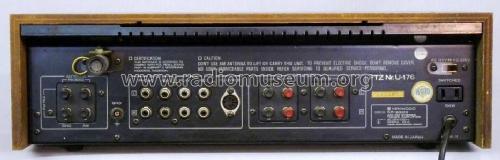

Notes AM-FM Stereo Tuner-Amplifier, 2 loudspeakergroups (A/B) can be switched, 2 x 20Watt output, Headphones exit Jack 6,3 mm, Entries: Phono/ Aux/ Tape, Filter: Hi/Loudness, Instrument for tuning, Antenna (75/300Ohm), Ferritantenna turnable at the back, 1 switched mains exit (100Watt) for other components for max. 125 Watts. Guest Jan Froerup from Moerkoev, Denmark has told us: "The model was tested for approval by the Danish safety board Demko. The return label is dated with February 27, 1976.
Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
