Stereo Receiver KR-3400

Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111544) Radio

Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111545) Radio

Stereo Receiver KR-3400; Trio-Kenwood (ID = 2087596) Radio
Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111099) Radio Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111100) Radio

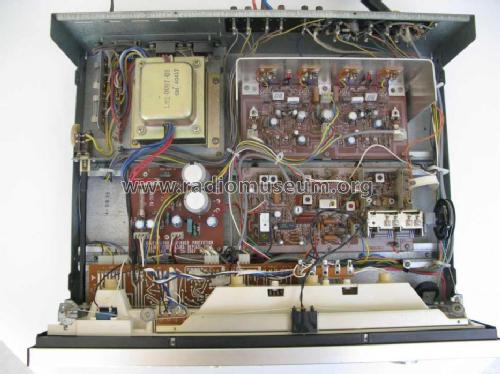

Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111102) Radio Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111104) Radio
Stereo Receiver KR-3400; Trio-Kenwood (ID = 2087609) Radio
Use red slider bar for more.
Stereo Receiver KR-3400; Trio-Kenwood (ID = 1111099) Radio
Trio-Kenwood: Stereo Receiver KR-3400 [Radio] ID = 1111099 933x324
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver KR-3400, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 65 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver KR-3400 - Trio-Kenwood Electronic Inc.;
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 480 x 137 x 344 mm / 18.9 x 5.4 x 13.5 inch
Notes FM tuner section: 87.5 to 108 MHz. Sensitivity 2.5 micro V. Frequency response 20 to 15000 Hz. Stereo separation 33 dB at 1000 Hz.
AM tuner section: Sensitivity 25 micro V. Buil-in ferrite antenna.
Main amplifier section: RMS power output 22 watts x 2 unto 8 ohms at 1000 Hz. Dynamic power output 65 watts into 8 ohms. Power bandwidth 10 to 30000 Hz. Speaker impedance: 4 to 16 ohms.
Pre-amplifier section: Input sensitivity Pono 2.5 mV, 50 Kohms; AUX and Tape Play 150 mV, 45 Kohms. Frequency response: Phono RIAA +-1.5 dB; AUX and Tape Play 10 to 40000 Hz +-1.5 dB. General: Power consumption 145 watts.
Net weight (2.2 lb = 1 kg) 8.4 kg / 18 lb 8 oz (18.502 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original prospect or advert

Model page created by Rafael Chueca. See "Data change" for further contributors.
