DC Stereo Receiver KR-5010

DC Stereo Receiver KR-5010; Trio-Kenwood (ID = 828310) Radio DC Stereo Receiver KR-5010; Trio-Kenwood (ID = 828311) Radio
DC Stereo Receiver KR-5010; Trio-Kenwood (ID = 828312) Radio DC Stereo Receiver KR-5010; Trio-Kenwood (ID = 828313) Radio
Use red slider bar for more.

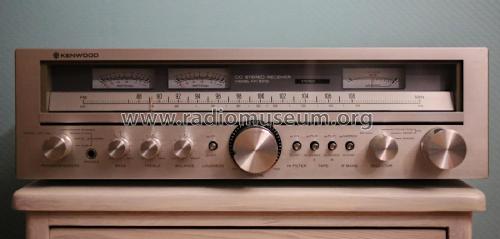

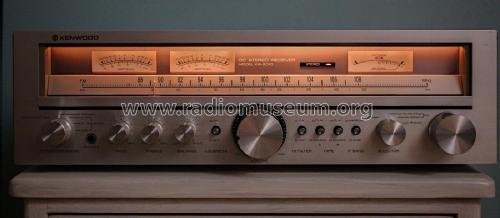

DC Stereo Receiver KR-5010; Trio-Kenwood (ID = 828310) Radio
Trio-Kenwood: DC Stereo Receiver KR-5010 [Radio] ID = 828310 933x290
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC Stereo Receiver KR-5010, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1979 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 1:
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 45 W (55 W max.)
from Radiomuseum.org Model: DC Stereo Receiver KR-5010 - Trio-Kenwood Electronic Inc.;

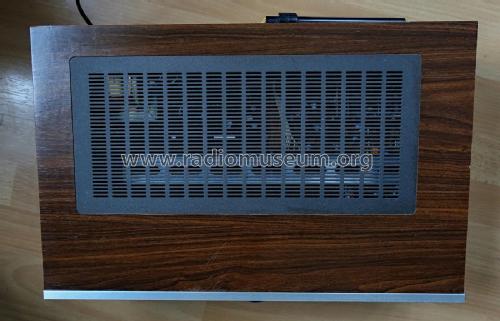

Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 471 x 139 x 358 mm / 18.5 x 5.5 x 14.1 inch
Notes DC Stereo Receiver mit 2*45 Watt Sinus Ausgangsleistung an 8Ohm, Frequenzbereich 20Hz-20000Hz, Klirrfaktor > 0,03%. Stereo UKW Teil, MW Teil und weiteren Eingängen für Plattenspieler(MM) und 2*Tonband/Cassette.
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Source of data -- Original-techn. papers.

Model page created by Holger Krebs. See "Data change" for further contributors.
