AM-FM Stereo Receiver KR-5030

AM-FM Stereo Receiver KR-5030; Trio-Kenwood (ID = 1847306) Radio AM-FM Stereo Receiver KR-5030; Trio-Kenwood (ID = 573436) Radio
Use red slider bar for more.
AM-FM Stereo Receiver KR-5030; Trio-Kenwood (ID = 1847306) Radio

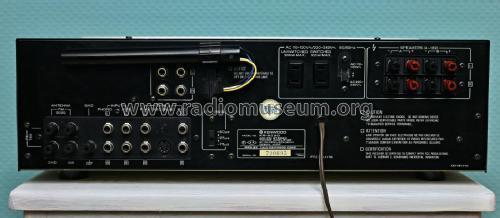

Trio-Kenwood: AM-FM Stereo Receiver KR-5030 [Radio] ID = 1847306 900x394
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Stereo Receiver KR-5030, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (unknown quality)
from Radiomuseum.org Model: AM-FM Stereo Receiver KR-5030 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Rack
Dimensions (WHD) 18.9 x 5.9 x 15.9 inch / 480 x 150 x 404 mm
Notes AM/FM Stereo Receiver, 60 watts per channel driven at 8 ohms.
FM Dolby deemphasis switch and FM Auto Muting. Subsonic filter, 2 tape monitors with A to B dubbing.
Optional CB-12K walnut veneer cabinet, B-12 simulated walnut veneer side panels or D-7 carrying handles available.
Net weight (2.2 lb = 1 kg) 13.3 kg / 29 lb 4.7 oz (29.295 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
