• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202622

• • alternative name: Trio Corp.
  • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 54

• Semiconductors

• Main principle
• ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 130 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

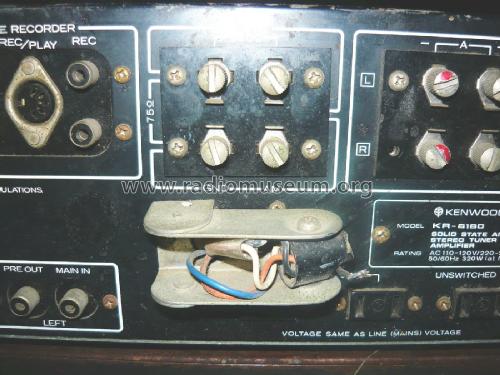

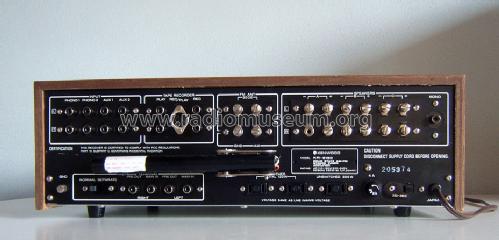

• Model: Stereo Receiver KR-6160 - Kenwood, Trio-Kenwood Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 16.75 x 5.5 x 12.37 inch / 425 x 140 x 314 mm

• Notes
• AM-FM Stereo Receiver. 65 Watts per channel at 4 Ohms, 55 Watts per channel at 8 Ohms with no more than 0,5% THD.

• Net weight (2.2 lb = 1 kg)
• 23.8 lb (23 lb 12.8 oz) / 10.805 kg

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
