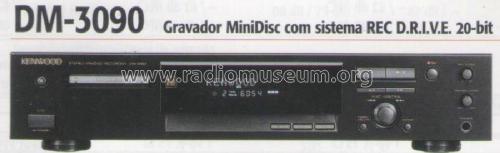

MiniDisc Recorder DM-3090

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1997
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 295020
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220/240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: MiniDisc Recorder DM-3090 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 94 x 300 mm / 17.3 x 3.7 x 11.8 inch
  • Notes

  • Mini Disc recorder/player, rec D.R.I.V.E 20 bit system, 14-level fluorescent set, new fast movement and fast rhythm to move or delete multiple tracks, aut/manual recording track, location title, program and repeat modes, recorder and player time, version 4,5 ATRAC system with 24 bit resolution, converter sample rate for recording from any digital source, 1 optical terminal and 1 coaxial digital input/output, pair of analog input and output terminals,  direct text input via 10 remote control keys, frequency of sampling 44,1 kHz frequency response 8Hz-20 kHz +- 1 dB, signal-to-noise ratio »100 dB, harmonic distortion total « 0,01% (1kHz) weeping & floating immeasurable, level / impedance sortie 2V « 2 kohms, optic digital output -15dB-21 dB, quantization 1 bit,oversamply 8 fs.

  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Mentioned in
  • Catalogues Kenwood 1997, Model Page 27
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
