Solid State AM-FM Stereo Tuner KT-2001A

Kenwood, Trio-Kenwood Inc.; Komagane

  • Year
  • 1973/1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 319318
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Solid State AM-FM Stereo Tuner KT-2001A - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 352 x 118 x 240 mm / 13.9 x 4.6 x 9.4 inch
  • Notes

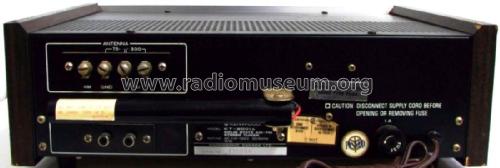

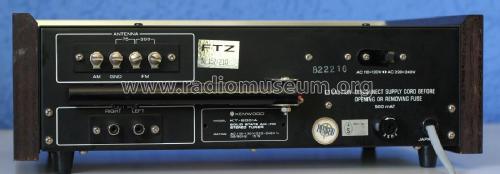

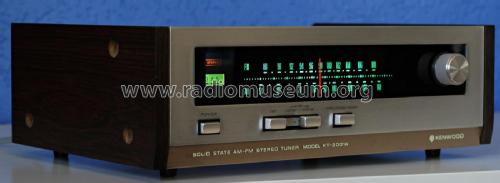

  • A midi size AM/FM stereo hi-fi tuner with an analogue dial, housed in a metal case with wooden side panels. With signal strength meter, MPX Noise Filter button, RCA Line Out phono sockets, terminals for AM and FM antennae, adjustable bar aerial on the back.


    Specification
    FM Tuner Section
    Antenna Impedance 300Ω Balanced & 75Ω Unbalanced
    Usable Sensitivity IHF 2µV
    Harmonic Distortion 0.5%
    Signal to Noise Ratio 60dB
    Capture Ratio 4.0dB
    Selectivity IHF (Alt Channel) Better than 45dB
    Image Rejection Better than 60dB
    IF Rejection Better than 100dB
    AM Suppression Better than 45dB
    FM MPX Section
    Stereo Separation Better than 30dB at 1,000Hz
    Better than 20dB at 10,000Hz
    Harmonic Distortion  0.7%
    Sub Carrier Suppression Better than 40dB
    AM Tuner Section
    Antenna Built-in ferrite antenna, External antenna terminals
    Usable Sensitivity IHF 25µV
    Signal to Noise Ratio  Better than 45dB
    Selectivity IHF Better than 25dB
    Image Rejection Better than 45dB
    IF Rejection Better than 35dB
    Output
    Output Voltage FM : 1.0V (at 400Hz 100% Mod)
    AM : 0.4V (at 400Hz 30% Mod)

    Versions/Power Requirements
    110-120V AC 50/60Hz
    110-120 / 220-240V AC 50/60Hz with voltage selector switch

    Power Consumption: 15W

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Mentioned in
  • -- Original prospect or advert (Kenwood HiFi '73/'74 catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Kenwood Service Sheet Schema & Specification KT-2001A)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
