• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208307

• • alternative name: Trio Corp.
  • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• TA7060 SN76115 RC4558 2SD287 2SB539 2SD287 2SB539

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

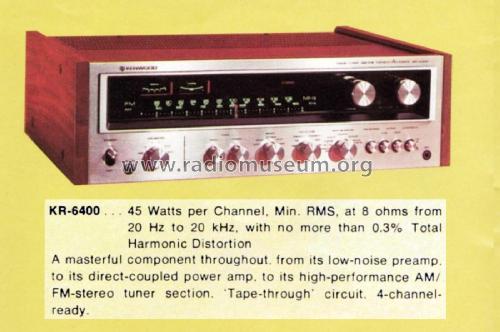

• Model: Solid State AM/FM Stereo Receiver KR-6400 - Kenwood, Trio-Kenwood Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 151 x 344 mm / 18.9 x 5.9 x 13.5 inch

• Notes
• Solid State AM/FM Stereo Receiver mit 2x 45 Watt Sinus an 8 Ohm (20 - 20000Hz), Klirrfaktor 0,3%.
  Regelbereiche Bass, MID, TREBLE, LOUDNESS, HIGH FILTER, LOW FILTER.
  Signal Meter, Tuning Meter.
  Seitenteile: Holzwangen

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
