Solid State Stereo Amplifier KA-4002

Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2099006) Ampl/Mixer
Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2099000) Ampl/Mixer Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2099002) Ampl/Mixer
Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2099003) Ampl/Mixer Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2099004) Ampl/Mixer
Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2101535) Ampl/Mixer Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2339413) Ampl/Mixer
Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2339414) Ampl/Mixer Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2339415) Ampl/Mixer
Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2339416) Ampl/Mixer
Use red slider bar for more.
Solid State Stereo Amplifier KA-4002; Trio-Kenwood (ID = 2099000) Ampl/Mixer
Trio-Kenwood: Solid State Stereo Amplifier KA-4002 [Ampl/Mixer] ID = 2099000 1200x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State Stereo Amplifier KA-4002, Trio-Kenwood Electronic Inc.; Komagane:
Photo with permission of owner

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1970 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 22: 2SC458 2SC458 2SC871 2SC871 2SC971 2SC458 2SC458 2SC458 2SC458 2SC984 2SC984 2SC984 2SC984 2SA565 2SA565 2SC715 2SC715 2SC734 2SD155 2SD155 2SD155 2SD155
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110-120; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 36 W (58 W max.)
from Radiomuseum.org Model: Solid State Stereo Amplifier KA-4002 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 330 x 117 x 240 mm / 13 x 4.6 x 9.4 inch
Notes

This amp has inputs for; 2 record player, 2 Aux, Radio, and Tape record and play.

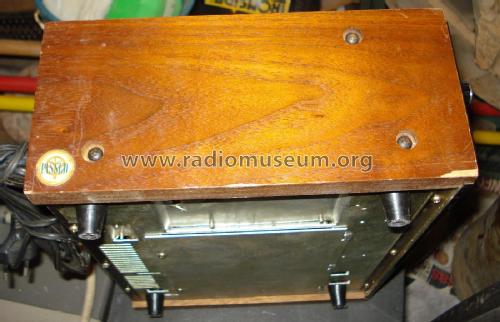

The amp is built in a metal cabinet, for either stand alone or build in, here it is shown with the optional Teak veneered cover.

There are preamp output sockets and power amp input sockets on the rear, possibly for the addition of a Graphic Equalizer.

Net weight (2.2 lb = 1 kg) 5.7 kg / 12 lb 8.9 oz (12.555 lb)

Model page created by Mike Edwards. See "Data change" for further contributors.
