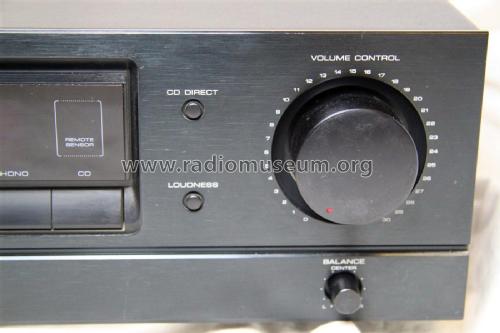

Stereo Amplifier KA-109

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1990 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 281800
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Amplifier KA-109 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 133 x 281 mm / 17.3 x 5.2 x 11.1 inch
  • Notes

  • Trio Kenwood Stereo Integrated Amplifier Model KA-109.
    Power output:
    120 watts per channel into 8Ω (stereo) for U.S.A. and Canada
    Frequency response: 10Hz to 100kHz
    Total harmonic distortion: 0.03%
    Input sensitivity: 2.5mV (MM), 150mV (line)
    Signal to noise ratio: 75dB (MM), 100dB (line)
    Output: 150mV (line)
    Bass Control: 100Hz +/-10dB
    Treble Control: 10000Hz +/-10dB
    Loudness: 70Hz (at -30dB volume level) +8dB

    Accessories:
    Kenwood Universal Programmable Remote Control Unit RC-120

  • Net weight (2.2 lb = 1 kg)
  • 8.9 kg / 19 lb 9.7 oz (19.604 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
