Stereo Automatic Turntable System P-110
Kenwood, Trio-Kenwood Inc.; Komagane
- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1998
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 267519
-
- alternative name: Trio Corp.
- Brand: Jennen

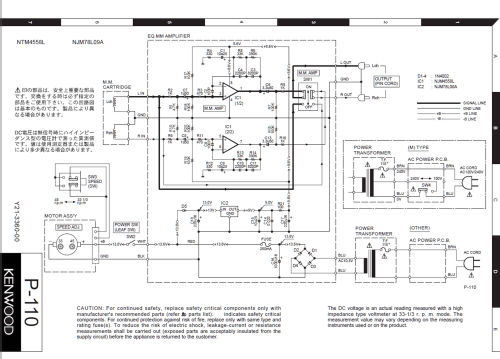

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Automatic Turntable System P-110 - Kenwood, Trio-Kenwood Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 400 x 103 x 380 mm / 15.7 x 4.1 x 15 inch
- Notes
-
Trio Kenwood Belt Driven Stereo Automatic Turntable System Model P-110.
Platter 295mm
2 Speeds - 33,33 & 45 rpm
Tonearm - Integrated straight tonearm, 215 mm
Cartridge - MM Type, Stylus N-76 with 0,5mi diamond
20 - 20000Hz
Power Consumption 4 Watts
DustCover
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Mentioned in
- - - Manufacturers Literature (Service Manual)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
