Stereo Graphic Equalizer GE-1100
Kenwood, Trio-Kenwood Inc.; Komagane
- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1984
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 289688
-
- alternative name: Trio Corp.
- Brand: Jennen

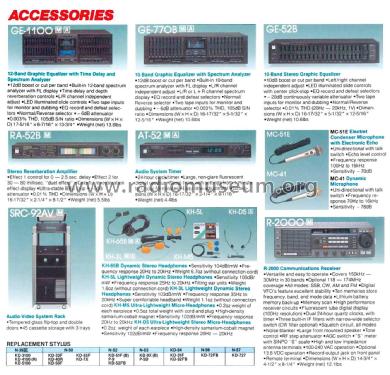

Kenwood Catalogue 1984 - HiFi Equipment
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Graphic Equalizer GE-1100 - Kenwood, Trio-Kenwood Inc.;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 163 x 350 mm / 17.3 x 6.4 x 13.8 inch
- Notes
-
Trio 12-Band Stereo Graphic Equalizer Model Kenwood GE-1100.
Built-in 12-band spectrum analyzer with FL display
Output Level: 1V (9V max)
Frequency response: 10 - 50000 Hz
Signal to Noise Ratio: 105dB
Total harmonic distortion: 0.003%
Control Range: ± 12dB
Frequency Bands:
16, 32, 63, 125, 250, 500, 1000, 2000, 4000, 8000, 16000, 32000 Hz
2 Tape Inputs for Monitor and dubbing
Power Consumption 30 Watts
- Net weight (2.2 lb = 1 kg)
- 6.2 kg / 13 lb 10.5 oz (13.656 lb)
- Mentioned in
- - - Manufacturers Literature (Kenwood Catalogue 1984 - HiFi Equipment)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
