Stereo Receiver KR-3130

Stereo Receiver KR-3130; Trio-Kenwood (ID = 1537618) Radio

Stereo Receiver KR-3130; Trio-Kenwood (ID = 1537619) Radio
Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541678) Radio Stereo Receiver KR-3130; Trio-Kenwood (ID = 1450445) Radio
Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541679) Radio Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541680) Radio
Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541681) Radio Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541682) Radio
Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541683) Radio Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541685) Radio
Stereo Receiver KR-3130; Trio-Kenwood (ID = 1790531) Radio
Use red slider bar for more.
Stereo Receiver KR-3130; Trio-Kenwood (ID = 1541678) Radio
Trio-Kenwood: Stereo Receiver KR-3130 [Radio] ID = 1541678 933x421
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver KR-3130, Trio-Kenwood Electronic Inc.; Komagane:
Thanks for Mr.astrast14, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 32:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-120; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 38 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver KR-3130 - Trio-Kenwood Electronic Inc.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 425 x 122 x 315 mm / 16.7 x 4.8 x 12.4 inch
Notes AM/FM Stereo Receiver mit 2x 19 Watt Sinus an 8 Ohm (20 - 20000Hz), Klirrfaktor 0,2%.
Stufenweise Klangregelung (Höhen und Tiefen), Signalmeter.

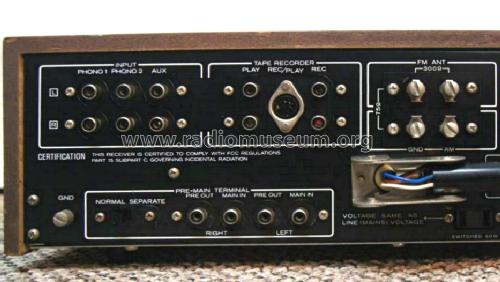

Vor- und Endverstärker können durch einen Schalter auf der Rückseite getrennt werden.
1 FET, 1 IC, 33 Dioden.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Trio-Kenwood Electronic Inc.; Komagane
Here you find 755 models, 676 with images and 204 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
