Stereo Receiver KR-4400

Stereo Receiver KR-4400; Trio-Kenwood (ID = 2087595) Radio
Stereo Receiver KR-4400; Trio-Kenwood (ID = 1363418) Radio Stereo Receiver KR-4400; Trio-Kenwood (ID = 1362972) Radio
Stereo Receiver KR-4400; Trio-Kenwood (ID = 1362973) Radio Stereo Receiver KR-4400; Trio-Kenwood (ID = 1363419) Radio
Stereo Receiver KR-4400; Trio-Kenwood (ID = 1490788) Radio Stereo Receiver KR-4400; Trio-Kenwood (ID = 1490791) Radio
Stereo Receiver KR-4400; Trio-Kenwood (ID = 1490793) Radio Stereo Receiver KR-4400; Trio-Kenwood (ID = 1490796) Radio
Stereo Receiver KR-4400; Trio-Kenwood (ID = 1490798) Radio Stereo Receiver KR-4400; Trio-Kenwood (ID = 2087608) Radio
Use red slider bar for more.

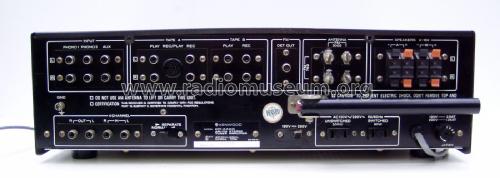

Stereo Receiver KR-4400; Trio-Kenwood (ID = 1363418) Radio
Trio-Kenwood: Stereo Receiver KR-4400 [Radio] ID = 1363418 933x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver KR-4400, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-120; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 54 W (90 W max.)
from Radiomuseum.org Model: Stereo Receiver KR-4400 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 480 x 137 x 345 mm / 18.9 x 5.4 x 13.6 inch
Notes

AM/FM Stereo Receiver mit 2x 27 Watt Sinus 1kHz an 8 Ohm bzw. 2x 33 Watt Sinus 1kHz an 4 Ohm. (20 - 20000Hz), Klirrfaktor 0,5%.

Musikleistung 90 W an 8 Ohm, 130 W an 4 Ohm.
Regelbereiche Bass, Mid, Treble, Loudness, High Filter.
Signal Meter.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
