• Year
  • 1994 ?
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 91292
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TH-22E - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 56 x 117 x 25 mm / 2.2 x 4.6 x 1 inch
  • Notes

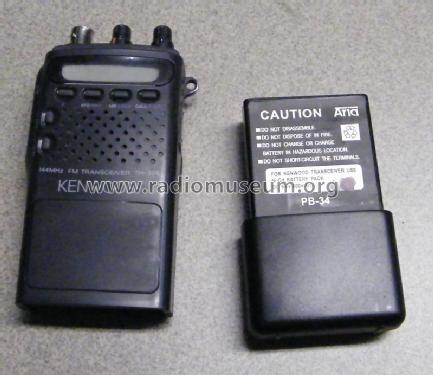

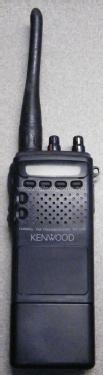

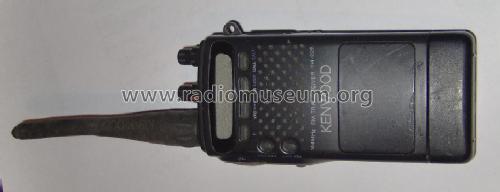

  • Kenwood Handheld-VHF-FM-Transceiver TH-22E.
    Range from 144-146 MHz; 41 memories; Pout: 5 W.
  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
