- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1991
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 91296
-
- alternative name: Trio Corp.
- Brand: Jennen
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 4505/455 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 7.2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TH-27E - Kenwood, Trio-Kenwood Inc.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 124 x 50 x 38 inch / 3150 x 1270 x 965 mm
- Notes

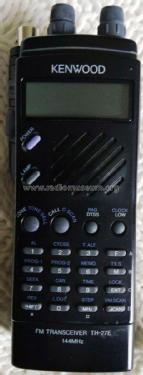

- Kenwood Handheld VHF-FM-Transceiver TH-27E.
Range from 144-146 MHz; Pout: 1 W.
40 memories; DTMF; DTSS; CTCSS optional; external power supply 7.2–16 V possible.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Mentioned in
- beam Amateurfunk-Geräteführer '92
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
