TH-77E

TH-77E; Trio-Kenwood (ID = 1870662) Amat TRX TH-77E; Trio-Kenwood (ID = 1870663) Amat TRX

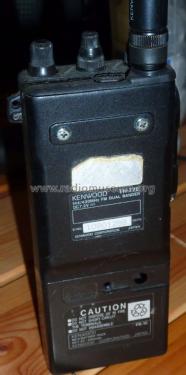

TH-77E; Trio-Kenwood (ID = 1870664) Amat TRX TH-77E; Trio-Kenwood (ID = 1870665) Amat TRX
Use red slider bar for more.
TH-77E; Trio-Kenwood (ID = 1870662) Amat TRX
Trio-Kenwood: TH-77E [Amat TRX] ID = 1870662 849x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model TH-77E, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1990 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 45050/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 7.2 / 13.8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: TH-77E - Trio-Kenwood Electronic Inc.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 58 x 140 x 29 mm / 2.3 x 5.5 x 1.1 inch
Notes Kenwood Handheld VHF-/UHF-FM-Transceiver TH-77E.
Ranges from 144-146 MHz (RX 136-165 MHz) and 430-440 MHz (RX 438-450 MHz); Twin-RX; CTCSS; DTSS; 42 memories; Pout: 5 W on both bands.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Iven Müller. See "Data change" for further contributors.
