• Year
  • 1992 ?
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 91330
    • alternative name: Trio Corp.
    • Brand: Jennen

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TH-78A/E - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 50 x 134 x 41 mm / 2 x 5.3 x 1.6 inch
  • Notes

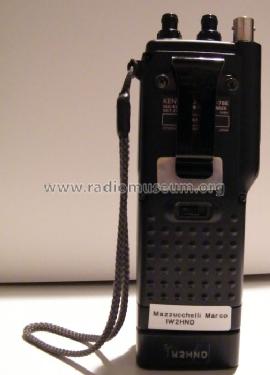

  • Kenwood Handheld VHF-/UHF-FM-Transceiver TH-78A/E.
    Range from TX: 144-146 and 430-440 MHz,
    RX: 100-180, 300-500 and 800-1000 MHz;
    Twin-RX; Pout: 5 W on both bands.

  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
