Solid State AM-FM Stereo Receiver TK-40L

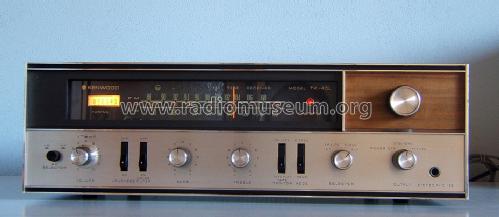

Solid State AM-FM Stereo Receiver TK-40L; Trio-Kenwood (ID = 1682011) Radio Solid State AM-FM Stereo Receiver TK-40L; Trio-Kenwood (ID = 1682012) Radio
Solid State AM-FM Stereo Receiver TK-40L; Trio-Kenwood (ID = 1682013) Radio Solid State AM-FM Stereo Receiver TK-40L; Trio-Kenwood (ID = 589011) Radio
Use red slider bar for more.
Solid State AM-FM Stereo Receiver TK-40L; Trio-Kenwood (ID = 1682011) Radio
Trio-Kenwood: Solid State AM-FM Stereo Receiver TK-40L [Radio] ID = 1682011 930x402
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State AM-FM Stereo Receiver TK-40L, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 37:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Solid State AM-FM Stereo Receiver TK-40L - Trio-Kenwood Electronic Inc.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 133 x 308 mm / 16.5 x 5.2 x 12.1 inch
Notes 3-Band-Receiver mit 2 x 12,5 Watt Sinus an 8 Ohm.
37 Transistoren, 25 Dioden.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) - - Manufacturers Literature (Kenwood Service Sheet & Specification TK-40L)

Model page created by Franz Scharner. See "Data change" for further contributors.
