• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1991

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 89498

• • alternative name: Trio Corp.
  • Brand: Jennen

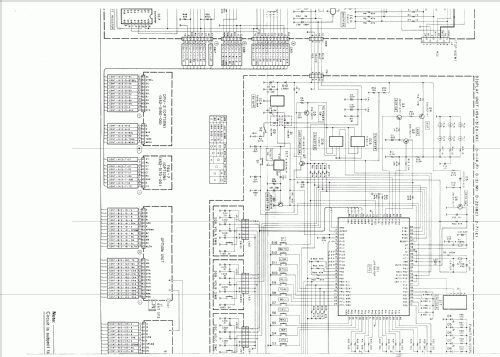

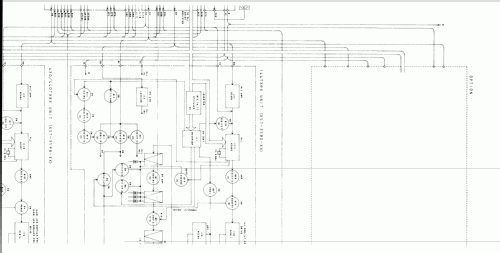

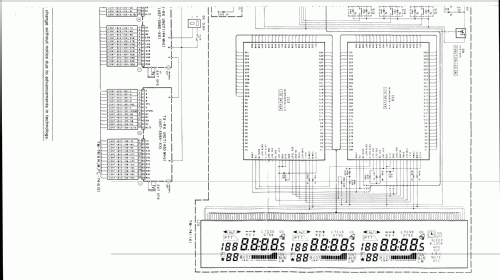

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700//21600/455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: TM-741E - Kenwood, Trio-Kenwood Inc.;

• Shape
• Miscellaneous shapes - described under notes.

• Notes
• Kenwood Mobile-VHF-/UHF-FM-Transceiver TM-741E.
  Range from 144-146 MHz and 430-440 MHz, 10 m or 6 m or 23 cm optional; Triple RX; P_out: 50 W on 2 m, 35 W on 70 cm.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Mentioned in
• beam Amateurfunk-Geräteführer '92

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
