TR-2200A
Kenwood, Trio-Kenwood Inc.; Komagane
- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1975 ??
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 89416
-
- alternative name: Trio Corp.
- Brand: Jennen
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 10700/455 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries / 10×1.2 or 8×1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: TR-2200A - Kenwood, Trio-Kenwood Inc.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 135 x 58 x 181 mm / 5.3 x 2.3 x 7.1 inch
- Notes
- ICs: 3

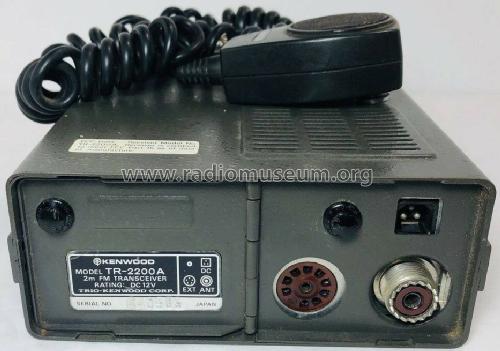

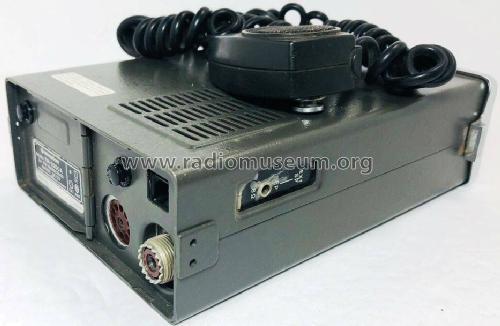

Kenwood Portable-VHF-FM-Transceiver TR-2200A.
12 xtal-channels in the range from 146 to 148 MHz; Built-in telescopic antenna; external power supply 10.4-15.2 V possible; Pout: 2 W.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
