• Year
  • 1982
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 89449
    • alternative name: Trio Corp.
    • Brand: Jennen

 Technical Specifications

  • Number of Transistors
  • 67
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 10695/455 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: TR-7850 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 175 x 64 x 220 mm / 6.9 x 2.5 x 8.7 inch
  • Notes

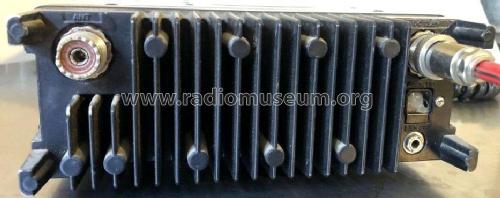

  • Kenwood Mobile-VHF-FM-Transceiver TR7850.
    Range from 144-146 MHz in 5-kHz- or 25-kHz-steps; 15 memories; Pout: 40 W/5 W.
    Similar to TR-7800, but higher output power.
  • Net weight (2.2 lb = 1 kg)
  • 2.1 kg / 4 lb 10 oz (4.626 lb)
  • Price in first year of sale
  • 1,200.00 DM
  • Mentioned in
  • RICOFUNK-Katalog 1983
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
