TR-8300

TR-8300; Trio-Kenwood (ID = 971444) Amat TRX TR-8300; Trio-Kenwood (ID = 971445) Amat TRX

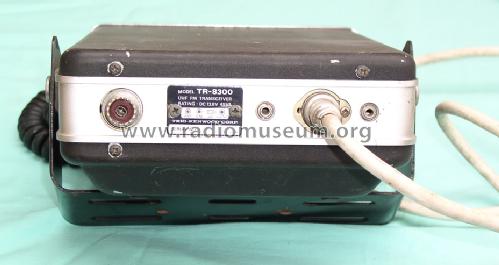

TR-8300; Trio-Kenwood (ID = 971446) Amat TRX
Use red slider bar for more.
TR-8300; Trio-Kenwood (ID = 971444) Amat TRX
Trio-Kenwood: TR-8300 [Amat TRX] ID = 971444 930x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-8300, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1978 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 10700/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: TR-8300 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 180 x 60 x 240 mm / 7.1 x 2.4 x 9.4 inch
Notes Kenwood Mobile-UHF-FM-Transceiver TR-8300.
23 xtal channels in the range from 430-440 MHz; Pout: 10 W.
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)

Model page created by Iven Müller. See "Data change" for further contributors.
