SSB Transceiver TS-511D

Kenwood, Trio-Kenwood Inc.; Komagane

Data
Forum
Pictures
Collections

  • Year
  • 1971 ??
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 274466
    • alternative name: Trio Corp.
    • Brand: Jennen

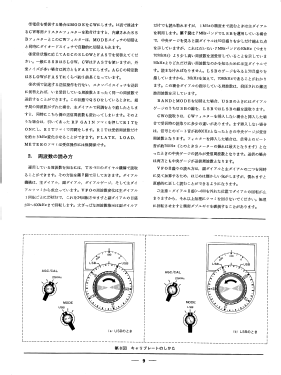

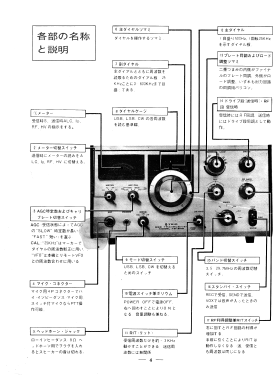

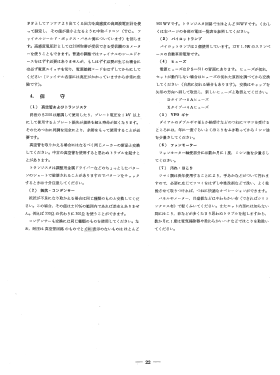

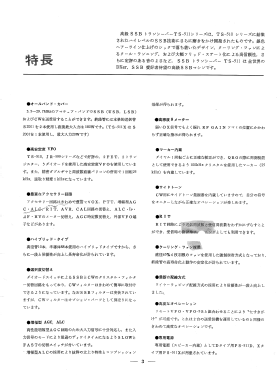

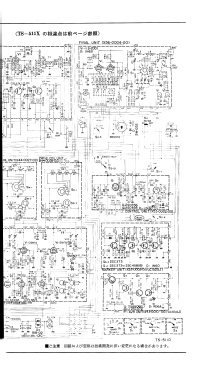

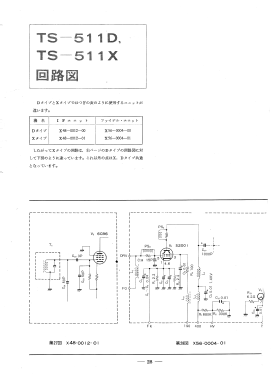

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 3395 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: SSB Transceiver TS-511D - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 330 x 185 x 340 mm / 13 x 7.3 x 13.4 inch
  • Notes

  • CW-SSB-Transceiver für die fünf klassischen Amateurfunkbänder. 2x S2001 in der PA. Erste variable ZF bei ~8MHz. 180 W PEP Input, 120 W bei 28 MHz.

    Nachfolger des TS-510. Das Äußere ist den Geräten TX-599 und JR-599S angepasst.

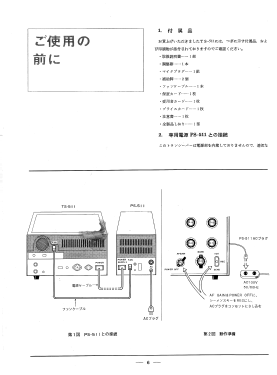

    Also see accessories Power Supply PS-511D and VFO-5S.

  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Price in first year of sale
  • 1,299.00 DM
  • Mentioned in
  • Amateurfunk-Katalog; Richter & Co. 1972
  • Author
  • Model page created by Otto Frosinn. See "Data change" for further contributors.
