Trio WE-8S WE-8S

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440756) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440758) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440760) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440761) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440762) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440763) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440764) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440765) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440766) Radio

Trio WE-8S WE-8S; Trio-Kenwood (ID = 2440767) Radio
Trio WE-8S WE-8S; Trio-Kenwood (ID = 1639297) Radio Trio WE-8S WE-8S; Trio-Kenwood (ID = 1639299) Radio
Use red slider bar for more.
Trio WE-8S WE-8S; Trio-Kenwood (ID = 1639297) Radio
Trio-Kenwood: Trio WE-8S WE-8S [Radio] ID = 1639297 933x691

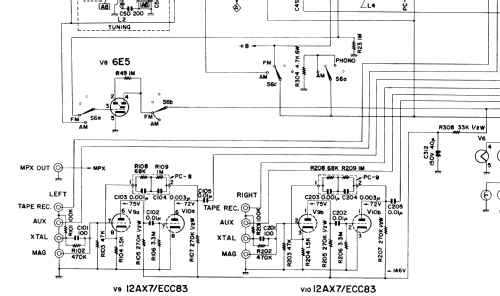

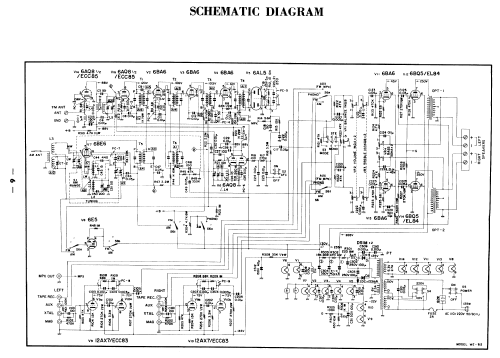

Select picture or schematic to display from thumbnails on the right and click for download.
For model Trio WE-8S WE-8S, Trio-Kenwood Electronic Inc.; Komagane:
Trio Brochure 1966

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 14:
Semiconductors (the count is only for transistors) 3:
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Trio WE-8S WE-8S - Trio-Kenwood Electronic Inc.;
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 452 x 127 x 280 mm / 17.8 x 5 x 11 inch
Notes Stereo Receiver
Sinusleistung: 2 x 5 Watt (Din); Musik 2 x 7 Watt (Din)
Frequenzgang: 20-17000 Hz +- 1dB
Lautsprecher: 8~16 Ohm
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Source of data - - Manufacturers Literature

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
