• Year
  • 1972
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 90270
    • alternative name: Trio Corp.
    • Brand: Jennen

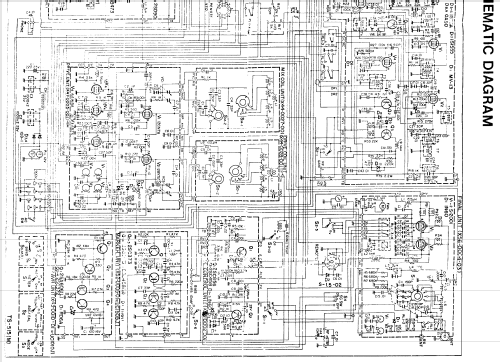

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 88
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 1 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: TS-515 - Kenwood, Trio-Kenwood Inc.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 330 x 195 x 355 mm / 13 x 7.7 x 14 inch
  • Notes
  • Kennwood HF-Transceiver TS-515.

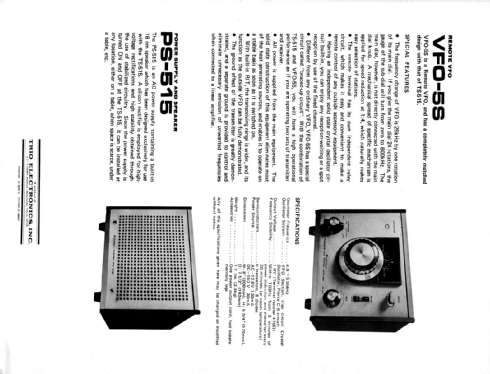

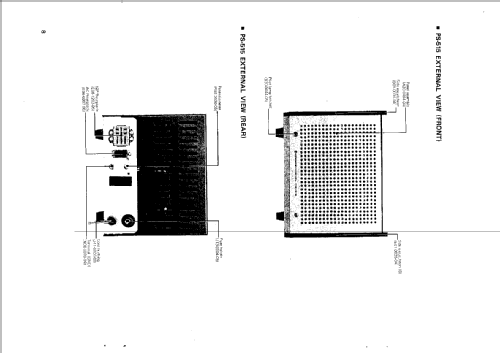

    Frequency range: 80- to 10-m-HAM-bands; comes with the external power-supply PS-515 (with loudspeaker); Pout: 100 W.
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Price in first year of sale
  • 2,330.00 SEK
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
