- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1989 ?
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 90277
-
- alternative name: Trio Corp.
- Brand: Jennen

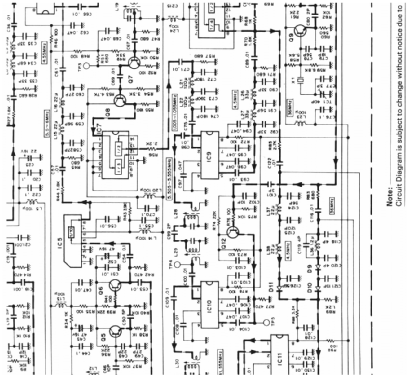

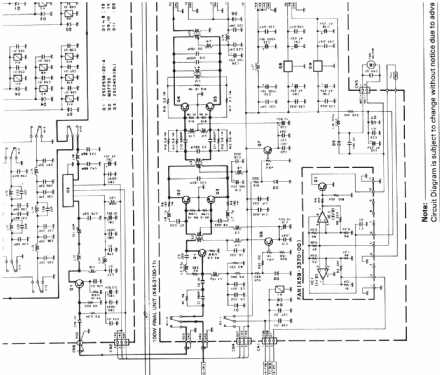

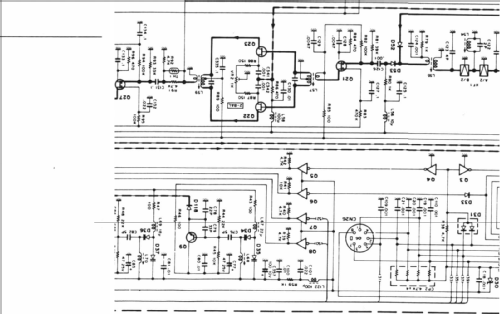

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 40055/455 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 12-16 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: TS-680S - Kenwood, Trio-Kenwood Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 270 x 96 x 270 mm / 10.6 x 3.8 x 10.6 inch
- Notes
- Kenwood HF-/VHF-Transceiver TS-680S.
Frequency range: TX 160-10 m incl. WARC and 6 m, RX 0.5-30 MHz and 50-54 MHz; Modes: AM, FM, SSB, CW; 31 memories; Pout: HF 100 W (AM 40 W, FM 50 W), VHF 10 W (AM 4 W).
- Net weight (2.2 lb = 1 kg)
- 6.1 kg / 13 lb 7 oz (13.436 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
