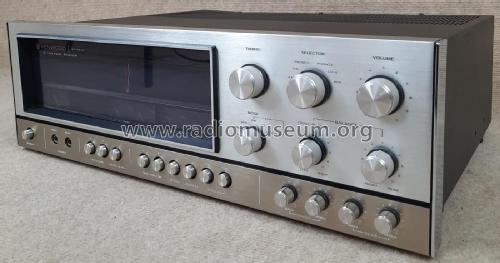

Two-Four Receiver KR-8340

Two-Four Receiver KR-8340; Trio-Kenwood (ID = 503560) Radio Two-Four Receiver KR-8340; Trio-Kenwood (ID = 503561) Radio
Two-Four Receiver KR-8340; Trio-Kenwood (ID = 503562) Radio Two-Four Receiver KR-8340; Trio-Kenwood (ID = 2083240) Radio
Use red slider bar for more.
Two-Four Receiver KR-8340; Trio-Kenwood (ID = 503560) Radio
Trio-Kenwood: Two-Four Receiver KR-8340 [Radio] ID = 503560 900x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Two-Four Receiver KR-8340, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 150 W (undistorted)
from Radiomuseum.org Model: Two-Four Receiver KR-8340 - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 535 x 165 x 390 mm / 21.1 x 6.5 x 15.4 inch
Notes

Vier-Kanal Receiver, acht LS-Ausgänge. Ausgangsleistung bei Quadro 4 x 28 W Sinus.

Net weight (2.2 lb = 1 kg) 18.9 kg / 41 lb 10.1 oz (41.63 lb)
Source of data - - Data from my own collection
Mentioned in Funk-Technik (FT) (22/1973, S. 859 / Neuvorstellung, Messe Berlin)

Model page created by Peter Böhm. See "Data change" for further contributors.
