W-24

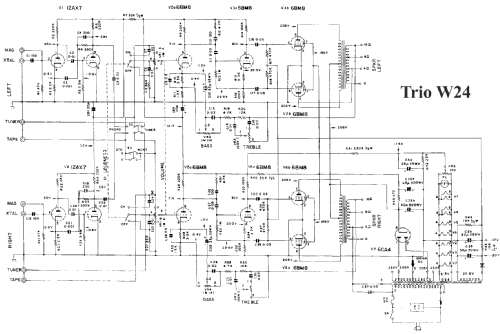

W-24; Trio-Kenwood (ID = 2577161) Ampl/Mixer
W-24; Trio-Kenwood (ID = 2593710) Ampl/Mixer W-24; Trio-Kenwood (ID = 2593711) Ampl/Mixer
Use red slider bar for more.
W-24; Trio-Kenwood (ID = 2593710) Ampl/Mixer
Trio-Kenwood: W-24 [Ampl/Mixer] ID = 2593710 1037x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model W-24, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1962 ? Category: Audio Amplifier or -mixer
Valves / Tubes 7: 12AX7 12AX7 6BM8 6BM8 6BM8 6BM8 6CA4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: W-24 - Trio-Kenwood Electronic Inc.;
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 393 x 295 x 149 mm / 15.5 x 11.6 x 5.9 inch
Notes

Stereo amplifier with 4-8-16 ohms output.

Tuner, tape and magnetic inputs.



Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in -- Original-techn. papers.

Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
