Combination Tester 1183-SC

Combination Tester 1183-SC; Triplett Electrical (ID = 2459227) Equipment Combination Tester 1183-SC; Triplett Electrical (ID = 1524505) Equipment
Combination Tester 1183-SC; Triplett Electrical (ID = 1524507) Equipment Combination Tester 1183-SC; Triplett Electrical (ID = 1524508) Equipment
Combination Tester 1183-SC; Triplett Electrical (ID = 1524509) Equipment
Use red slider bar for more.
Combination Tester 1183-SC; Triplett Electrical (ID = 2459227) Equipment
Triplett Electrical: Combination Tester 1183-SC [Equipment] ID = 2459227 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Combination Tester 1183-SC, Triplett Electrical Instrument Co.; Bluffton (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Triplett Electrical Instrument Co.; Bluffton (OH)
Year: 1941 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / AC: 120 / batteries 22.5 & 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Combination Tester 1183-SC - Triplett Electrical Instrument
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

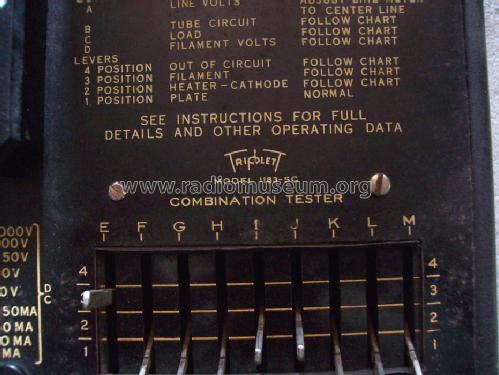

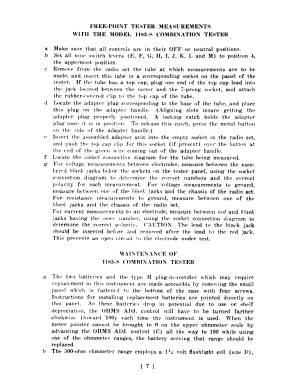

Emission type tube tester with settings cards. Tests AF output, measures AC/DC voltages, direct current, resistance and capacity. Additionally free-point testing is possible with a supplied adapter cable, plugging into a tube socket in the live set with the respective tube seated in the tester.

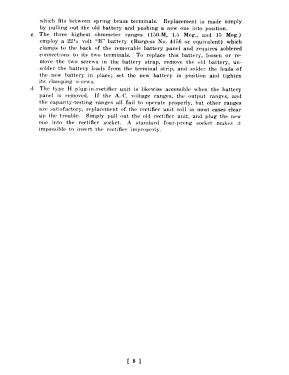

One D cell battery for the 500-ohm ohmmeter range, one B battery for the three highest ohmmeter ranges.

Net weight (2.2 lb = 1 kg) 7.1 kg / 15 lb 10.2 oz (15.639 lb)

Model page created by Giuseppe Feniello. See "Data change" for further contributors.
