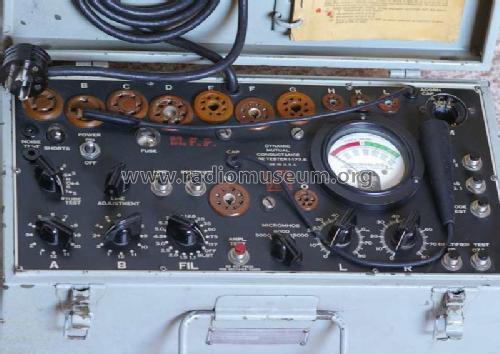

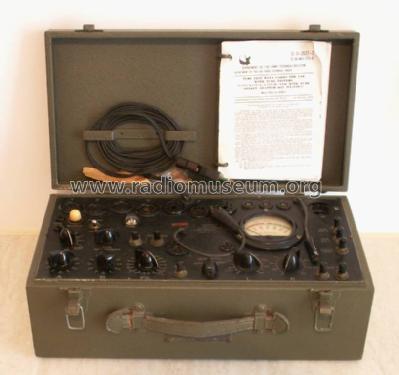

MILITARY U.S.: Tube Tester I-177-B [Equipment] ID = 1766861 1350x1419

Select picture or schematic to display from thumbnails on the right and click for download.

For model Tube Tester I-177-B, MILITARY U.S. (different makers for same model):
USA_Military U.S._tube tester I-177-B

Country:

United States of America (USA)

Manufacturer / Brand:

MILITARY U.S. (different makers for same model)

Year: 1952

Category: Service- or Lab Equipment

Valves / Tubes

2: 83 5Y3GT

Wave bands	- without
Details
Power type and voltage	Alternating Current supply (AC) / 115 Volt
Loudspeaker	- - No sound reproduction output.
Power out
from Radiomuseum.org	Model: Tube Tester I-177-B - MILITARY U.S. different makers
Material	Metal case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	390 x 143 x 212 mm / 15.4 x 5.6 x 8.3 inch
Notes	Different manufacturers.
Net weight (2.2 lb = 1 kg)	8.1 kg / 17 lb 13.5 oz (17.841 lb)
Source of data	- - Data from my own collection
Mentioned in	TB11-2627-2 ( Technical bulletin)

Model page created by A. J.. See "Data change" for further contributors.

All listed radios etc. from MILITARY U.S. (different makers for same model)
Here you find 348 models, 302 with images and 170 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Martin Bösch (CH)

Collection of Hartmut Daniels † 22.11.16 (D)

Collection of Antonio Marra (I)

Collection of Georges Werts (B)

Collection of Enrique Palacio (RA)

Collection of Emilio Ciardiello (I)

Collection of Enrico Puccini (I)

Collection of Sinisa Trlin (HR)

Collection of Vicente Moncholi-Cebrian (E)

Collection of a member from D

Collection of João-Afonso Santos (P)

Collection of Andreas Schulz (D)

Collection of A. J. (A)

Collection of Peter Kovacs (CH)

Collection of Adriano Scarpa (I)

Forum contributions about this model

MILITARY U.S.: Tube Tester I-177-B

Threads: 2 | Posts: 2

Hits: 1739 Replies: 0

military: I-177B; Tube Tester

Alexander Chrtek
30.Jan.13

military: I-177B; Tube Tester

Ein weiterer Hersteller ist : (I-177B SN:4388 Army-Ausführung=grün)

The Daven Co. Newark, N.J.

Hits: 2929 Replies: 0

triplett: I-177B; Tube Tester

Franz Harder
04.Nov.05

triplett: I-177B; Tube Tester

1) ein weiterer Hersteller dieses Gerätes ist die Firma Simpson Electric Co. Chicago, Illinois. Im Auftrag des Signal Corps US Army haben möglicherweise weitere Firmen dieses Gerät gefertigt.

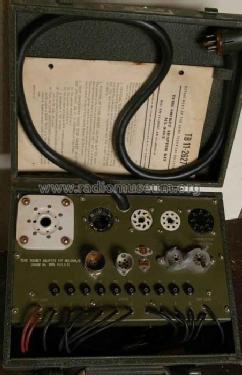

2) Zu dem Gerät gibt es einen Zusatzkasten, der über ein Kabel mit Oktalstecker an das Grundgerät I-177B (Socket E)angeschlossen wird.
Dieser 'Tube Socket Adapter Kit MX-949/U' ermöglicht die Prüfung weiterer Röhren, hauptsächlich Spezialröhren, Senderöhren, Miniatur- u. Noval-Röhren sowie Pencil Tubes.
Beschreibung und Röhrenliste enthält das Technical Bulletin TB 11-2627-3
