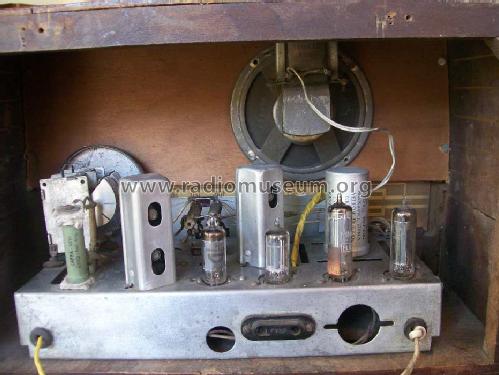

Desconocido ; UCOA; Buenos Aires (ID = 526849) Radio Desconocido ; UCOA; Buenos Aires (ID = 526851) Radio

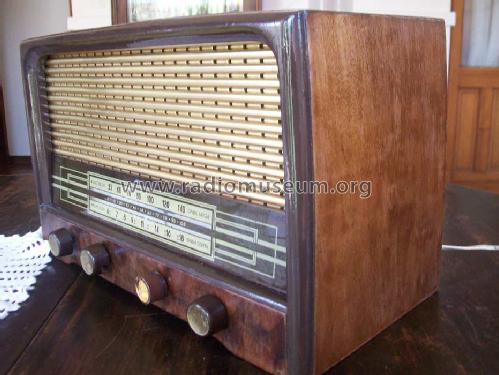

Desconocido ; UCOA; Buenos Aires (ID = 526850) Radio Desconocido ; UCOA; Buenos Aires (ID = 526852) Radio

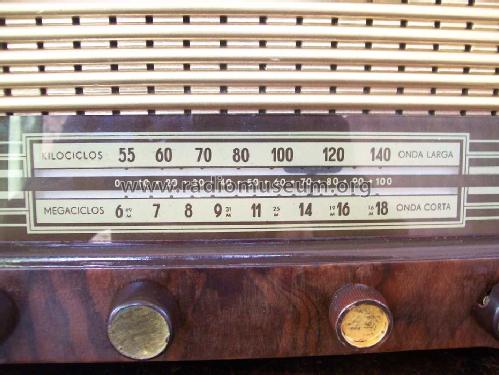

Desconocido ; UCOA; Buenos Aires (ID = 526853) Radio
Use red slider bar for more.
Desconocido ; UCOA; Buenos Aires (ID = 526849) Radio
UCOA; Buenos Aires: Desconocido [Radio] ID = 526849 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Desconocido, UCOA; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  UCOA; Buenos Aires
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.7 W (unknown quality)
from Radiomuseum.org Model: Desconocido - UCOA; Buenos Aires
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 240 x 200 mm / 15.7 x 9.4 x 7.9 inch
Notes Con unidad precalibrada UCOA y Transformadores de FI NucleoPerm.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data - - Data from my own collection
Mentioned in - - Data from my own collection

Model page created by Heriberto Tavella. See "Data change" for further contributors.
