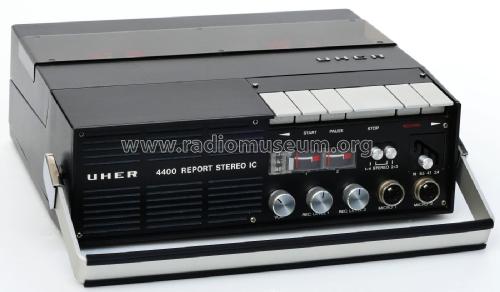

Uher Werke; München: Report Stereo IC 4400 [R-Player] ID = 2146000 1400x820
Select picture or schematic to display from thumbnails on the right and click for download.
For model Report Stereo IC 4400 schwarze Ausführung, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1975 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 20: AC151 AC153 BC238 BC308 BC384 µA706
Main principle Audio-Amplification
Details Tape Recorder
Power type and voltage 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Report Stereo IC 4400 [schwarze Ausführung] - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 95 x 227 mm / 11.2 x 3.7 x 8.9 inch
Notes

Internationale Spurlage: Vierspur; 4 Bandgeschwindigkeiten: 2,4 / 4,75 / 9,5 / 19 cm/s; Frequengang bei 19 cm/s: 35-20000Hz; Tonhöhenschwankung bei 19 cm/s: ± 0,2%; Stromversorgung: fünf Monozellen 1,5 Volt, dryfit-Akku 6V Z212, NC-Akku 6 Volt Z214, Autobatterien: 6V, 12V, 24V mit Anschlußkabel K716, K717; K712; Netzbetrieb mit Netz-/Ladegerät Z124A1.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)

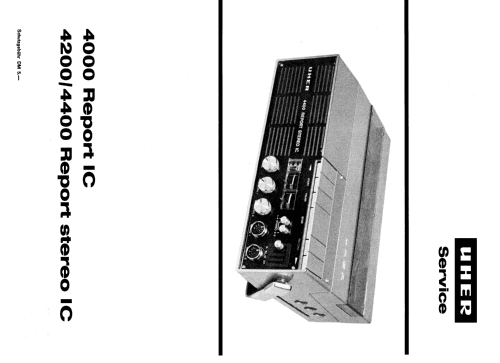

Mentioned in -- Original-techn. papers.

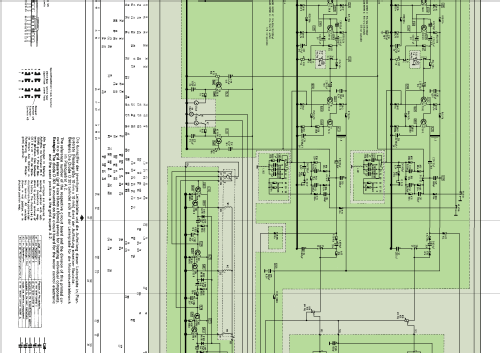

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Günter Kudicke. See "Data change" for further contributors.
