702L

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1966–1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 26680

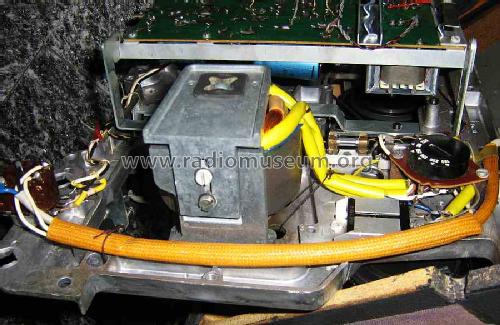

• Picture

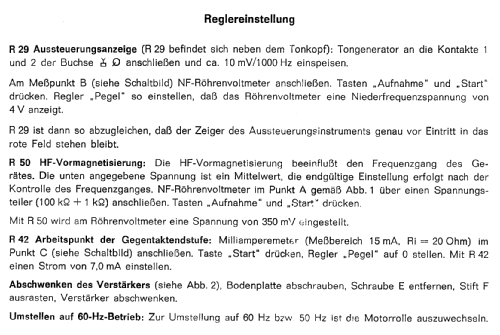

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AC151 AC151 AC151 AC151 AC153 AC153

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 702L - Uher Werke; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 417 x 185 x 345 mm / 16.4 x 7.3 x 13.6 inch

• Notes
• Zweispur-Mono;
  Bandgeschwindigkeit: 9,5 cm/s;
  Spulen-Ø 18 cm;
  Frequenzbereich: 40···14000 Hz.
  Preis zuzüglich Gema-Gebühr von 5,- DM.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 295.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• Bauer-Katalog, Bamberg, 1968
